VTKR

PRODUCT HIGHLIGHTS

Application:Level switch for Liquids

Operating Voltage:18...36 Vdc / 85...260 Vac (50/60Hz)

Consumption:DC <6mA / AC <10mA

Output:Relay (SPDT)

Viscosity:Max.: 20.000cs

Acurracy:0.1%

Repeatibility:<0.5mm

Delay:1 to 20 Sec. (adjustable)

Set point:13mm from the tip

Relay load :5A ( 250 Vac)

Enclosure Material:Aluminum

Electrical Connection:Cable Gland ½” NPT or M12 connector

Process Connection:3/4” ... 1 ½” BSP, NPT, Sanitary or Flanged connection

Body Material:316 S.S

Operating Temperature:-14 to 176º F (-10 to 80ºC)

Max Pressure:725 PSI (50 Bar)

Class Protection:IP65 (IEC 60529)

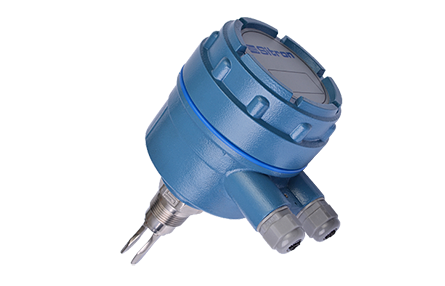

The VTKR with a large robust aluminum housing (G2) comes standard with a universal power supply:  24Vdc or 85 to 264Vac.    It is an ideal solution for point level detection of liquids, regardless of the conductivity or dielectric of the product.



All models are made in 316 Stainless Steel, can be ordered with a great variety of threaded, flange, or hygienic fittings, are available with Halar or epoxy coatings and can operate at temperatures up to 120ºC (248ºF).  The VTKR also features a time delay adjustment of 1, 5, 10 or 20 seconds as well as a Wet/Dry selection for both High and Low level application requirements.
